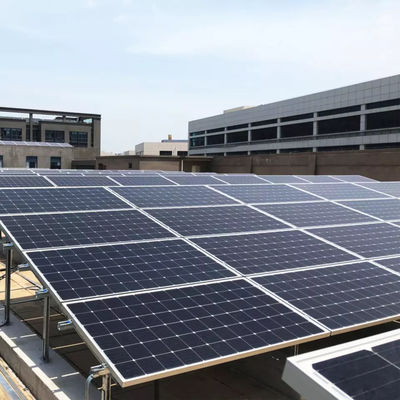

Large Longi Mono Solar Panels 450w Mono Bifacial LR4 72HPH 450M Wholesale
Electrical Characteristics STC : AM1.5 1000W/m² 25°C NOCT:AM1.5 800W/m² 20°C 1m/s Test uncertainty for Pmax:土3%
|
Module Type
|
LR4-72HPH-445M
|
LR4-72HPH-450M
|
LR4-72HPH-455M | LR4-72HPH-460M | LR4-72HPH-465M |
| Testing Condition |
STC NOCT
|
STC NOCT | STC NOCT | STC NOCT | STC NOCT |
| Maximum Power (Pmax/W) | 445 334.3 | 450 338.0 | 455 341.8 | 460 345.5 | 465 349.3 |
|
Open Circuit Voltage (Voc/V)
|
49.1 46.2 | 49.3 46.4 | 49.5 46.5 | 49.7 46.7 | 49.9 46.9 |
| Short Circuit Current (Isc/A) | 11.53 9.35 | 11.60 9.41 | 11.66 9.46 | 11.73 9.51 | 11.79 9.56 |
|
Voltage at Maximum Power (Vmp/)
|
41.3 38.4 | 41.5 38.6 | 41.7 38.8 | 41.9 39.0 | 42.1 39.2 |
|
Current at Maximum Power (Imp/A)
|
10.78 8.70 | 10.85 8.75 | 10.92 8.81 | 10.98 8.86 | 11.05 8.91 |
|
Module Efficiency/(%)
|
20.5 | 20.7 | 20.9 | 21.2 | 21.4 |
Operating Parameters
| Operational TemPerature |
-40°C - +85°C
|
|
Power Output Tolerance
|
0-3% |
|
Voc and Isc Tolerance
|
土3% |
| Maximum System Voltage | DC1500V (IEC/UL) |
| Maximum Series Fuse Rating | 20A |
|
Nominal Operating Cell Temperature
|
45土2°C
|
| Protection Class | Class II |
| Fire Rating | UL type 1or2 IEC ClassC |
| Front Side Maximum Static Loading |
5400Pa
|
| Rear Side Maximum Static Loading | 2400Pa |
|
Hailstone Test
|
25mm Hailstone at the speed of 23m/s |
Temperature Ratings (STC)
|
Temperature Coefficientof Isc
|
+0.050%/°C |
| Temperature Coefficientof Voc | -0.265%/°C |
|
Temperature Coefficient of Pmax
|
-0.340%/°C |
Specification
| item | value |
| place of Origin | China Jiangxi |
| Brand Name | LONGI |
| Model Number | LR4-72HPH-450M |
| Cell size | 166mmx166mm |
| Type | Half Cell |
| Panel Efficiency | 20.7% |
| Certificate | CE |
| Warranty | 25 Years |
100% Inspection
