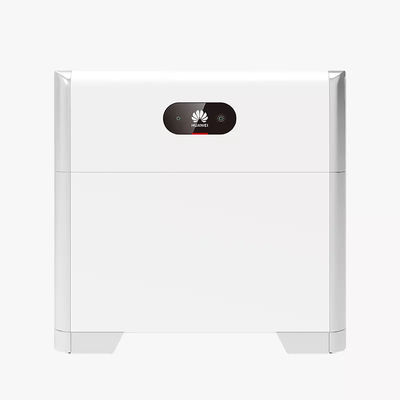

Huawei battery LUNA2000-10-S0 10kwh C0/E0 for solar inverter Smart String Energy Storage System Lithium Battery
|
Technical Specification
|
LUNA2000-5-S0
|
LUNA2000-10-S0
|
LUNA2000-15-S0
|
|||
|
Performance
|
|
|
|
|||
|
Power module
|
LUNA2000-5KW-CO
|
|
|
|||
|
Number of power modules
|
1
|
|
|
|||
|
Battery module
|
LUNA2000-5-E0
|
|
|
|||
|
Battery module energy
|
5 kwh
|
|
|
|||
|
Number of battery Modultes
|
1
|
2
|
3
|
|||
|
Battery usable energy
|
5 kwh
|
10 kwh
|
15 kwh
|
|||
|
Max.output power
|
2.5 kW
|
5 kW
|
|
|||
|
Peak output power
|
3.5 kw,10s
|
7kw,10s
|
|
|||
|
Nominal voltage(uingle phane system
|
450V
|
|
|
|||
|
Operating voltoge range (single phase system)
|
350-560V
|
|
|
|||
|
Nominal voltage(three phase system)
|
600V
|
|
|
|||
|
Opurating valtage range(three phase system)
|
600-980V
|
|
|
|||
|
Communication
|
|
|
|
|||
|
Dimension (W*D*H)
|
670*150*600(26.4*5.9*23.6 inch)
|
670*150*960mm(26.4*5.9*37.8 inch)
|
670*150*1320mm(26.4*59*60.0 inch)
|
|||
|
Weight(Floor stand toolrit incuded)
|
63.8 kg(140.71b)
|
113.8kg(250.9 1b)
|
163.8 kg(361.1 b)
|
|||
|
Power module dimension (W*D*H)
|
670*150*240mm(26.4*5.9*9.4 inch)
|
|
|
|||
|
Power module weight
|
12 kg (26.5 lb)
|
|
|
|||
|
Battery module dimension (W*D*H)
|
670*150*360mm(26.4*5.9*14.0 inch)
|
|
|
|||
|
Battery module weight
|
50kg(110.21b)
|
|
|
|||
|
Instaltation
|
Floor stand(standard),Wait mount (optional)
|
|
|
|||
|
Operating temperature
|
-10℃~+55℃(-40F~1310F)2
|
|
|
|||
|
Max,operating altiude
|
4.000m(13,123t)(Derating above 2.000 m)
|
|
|
|||
|
Environment
|
Indoor/ Outdoor
|
|
|
|||
|
Retative humidity
|
5%-95%
|
|
|
|||
|
Cooling Naturd convection Protection rating
|
1P 66 |
|
|
|||
|
Noise emssion
|
<29 dB
|
|
|
|||
|
Cell technology
|
Lithium-iron phosphate(LiFePO4)
|
|
|
|||
|
Scalability
|
Max.2systerns in parallet operation
|
|
|
|||
|
Compatibte lnverters
|
SUN2000-364/5.58F10KTL-MOSUN2000-3/4/5/6/8/10KTL-M15UN2000273136814/46/5/6XTL-L1.
|
|
|
|||
|
Standard Compliance(more available upon request)
|
|
|
|
|||
|
Certificates
|
CERCMCECVDE2510-50IEC626191EC60730,UN38.3
|
|
|
|||
|
Ordering and Deliverable Part
|
|
|
|
|||
|
Product ordering model
|
LUNA2000-5KW-CO,LUNA2000-5-E0,LUNA2000 Wal Mounting Bracket
|
|
|
|||
