Name: 20.48H-A1 HV 48Vdc 20.48 Kwh Solar Power Lithium Battery LFP Growatt Ark Lv
Brand: Growatt
SKU: ARK 20.48H-A1 HV
Price: 3 USD
Availability: InStock
Rating: 4.5 (134 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Features: High Capacity/Deep Cycle

Weight: 226kg

The Charging Ratio: 18.43kwh

The Discharge Rate: 18.43kwh

Warranty: 1 Year

Anode Material: LFP

Chargeable: Yes

Application: Solar Energy Storage Systems

BMS: Built-in BMS Protection

Protection: Protection

Port: Ningbo, Shanghai, Shenzhen

High Light:

20.48 kwh solar power lithium battery

48vdc solar power lithium battery

LFP growatt ark lv

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Growatt

Certification: ce

Model Number: ARK 20.48H-A1 HV

Payment & Shipping Terms

Packaging Details: One piece per carton.

Supply Ability: 100 Piece/Pieces per Week

Gallery

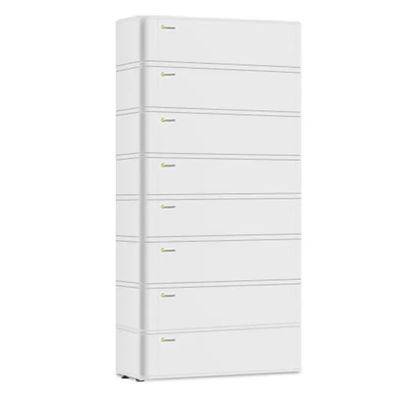

20.48H-A1 HV 48Vdc 20.48 Kwh Solar Power Lithium Battery LFP Growatt Ark Lv

Product Description

Growatt ARK 20.48H-A1 HV (IEC) high voltage lithium ARK Battery 48Vdc 20.48 kwh for solar system ARK HV solar storage

Product Description

ARK series batteries use cobalt-free lithium iron phosphate cells, and can provide various flexible solutions such as single-phase/three-phase, hybrid/AC coupling, and reserve energy storage according to the needs of different scenarios. With the use of the inverter and the multi-level protection provided by the BMS, it can ensure that the ARK battery has super safety and reliability, excellent user experience, and longer life. In addition, the ARK battery adopts a modular stacking design and is light in weight, which can be installed independently by a single person, saving users more time and money.

Product Details

20.48H-A1 HV 48Vdc 20.48 Kwh Solar Power Lithium Battery LFP Growatt Ark Lv 6

Specification

Growatt Battery	ARK7.6H	ARK10.2H	ARK12.8H	ARK15.3H
Battery Module	ARK2.5-A1 (2.56KWH,51.2V,28KG)
Number of Modules	3	4	5	6
Energy capacity	7.68KWH	10.24KWH	12.8KWH	15.36KWH
Usable capacity	6.9KWH	9.21KWH	11.52KWH	13.81KWH
Norminal voltage	153.6V	204.8V	256V	307.2V
Operating voltage range	141.6-170.4V	188.8-227.2V	236-284V	283.2-340.8V
Dimension (WDH)	650/260/725m m	650/260/905mm	650/260/1085m m	650/260/1265mm
Weight	91kg	118kg	145kg	172kg
Growatt Battery	ARK17.9H	ARK20.4H	ARK23.0H	ARK25.6H
Battery Module	ARK2.5-A1 (2.56KWH,51.2V,28KG)
Number of Modules	7	8	9	10
Energy capacity	17.92KWH	20.48KWH	23.04KWH	25.6KWH
Usable capacity	16.12KWH	18.43KWH	20.73KWH	23.4KWH
Norminal voltage	358.4V	409.6V	460.8V	512V
Operating voltage range	330.4-397.6V	377.6-454.4V	424.8-511.2V	472-568V
Dimension (WDH)	6502601445mm	6502601625mm	6502601805mm	6502601985mm
Weight	199kg	226kg	253kg	280kg
General
Battery type	Gobalt Free Lithium Iron Phosphate(LFP)
Standard Charge/Discharge Current	25A/0.5C
IP Protection	IP65
Installation	Wall-Mounted or Floor Installation*2
Operation Temperature	-10-50°C*
Warranty	10Years
BMS Controller	HVC60051-A1
Weight	8kg
Communication Port	CAN
Dimension(WDH)	650260185mm
BMS Monitoring Parameters	SOC,System Voltage,current, cell voltage,cell temperature, PCBA temperature measurement
Certification&Licensing	IEC 62619(cell&pack), CE,CEC,RCM,UN38.3

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Fuzhou Thinmax is a solar company located at the city Fuzhou which is the capital of Fujian province. We have about 50 office colleagues and 100 factory colleagues. With the professional colleagues and over 10 years experience of dealing with solar system, we are able to provide 100% satisfying service for customers. Not only for the ready products but also the customized products. In order to make the ship more fluently. We have cooperated with more than 20 shipping companies. After customers place the order. We will always choose the cheapest and reliable one to arrange the shipment. When customers have received the items. We have professional technician ready for customers if they have any problems.

FAQ

Q1: What is the delivery time?

A1: It's according to the model. We will ship the items within 3 days if the items in stock.

Q2: What ways of payment do you accept.

A2: We can accept LC, Paypal, Credit card, etc.

Q3: Will you provide shipping sevice?

A3: Yes. We will choose the best shipping way and shipping company for the customers according to the demands.

Q3: What if we have problems after sale?

A4: Don't worry. We have professional technicians ready for our customers who can take care of the problems.

Q5: What is the minimum quantity?

A5: We can send a sample to you. If you are satisfied with our products and service. Please place larger quantity to us.

Q6: Are the inverters original?

A6: Yes. Of course. If it's not. We will return all money back to you.
